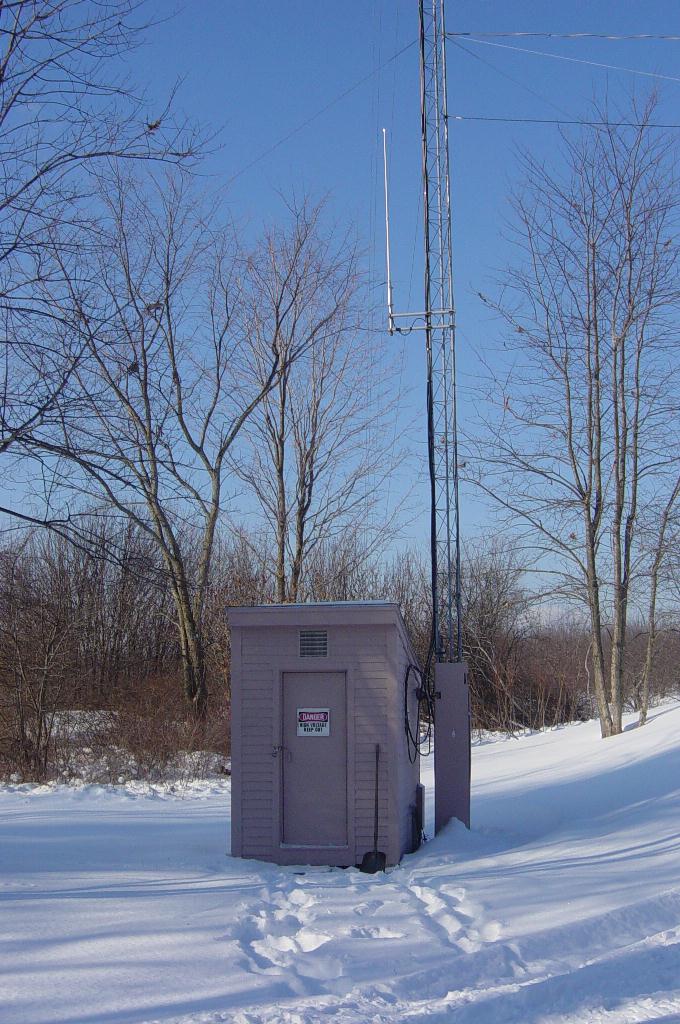

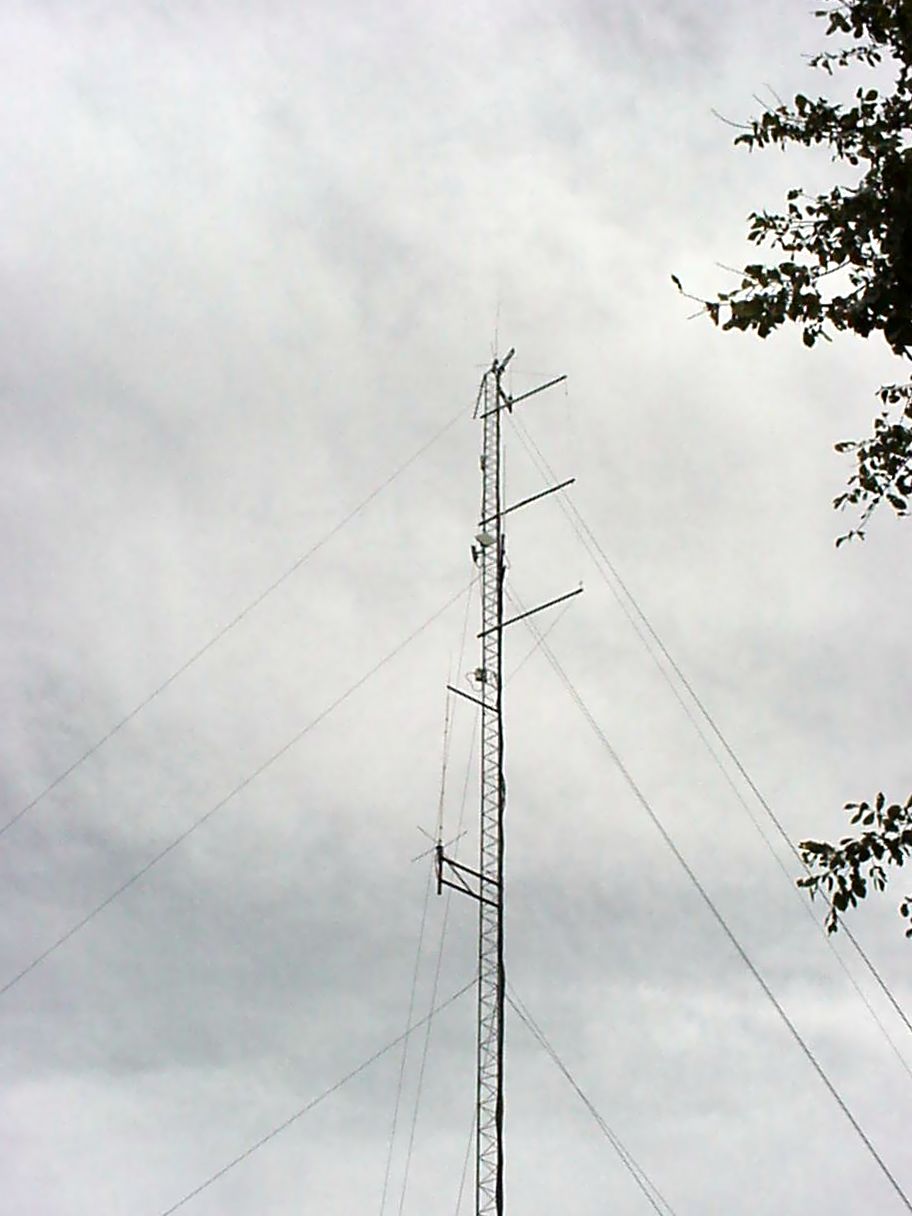

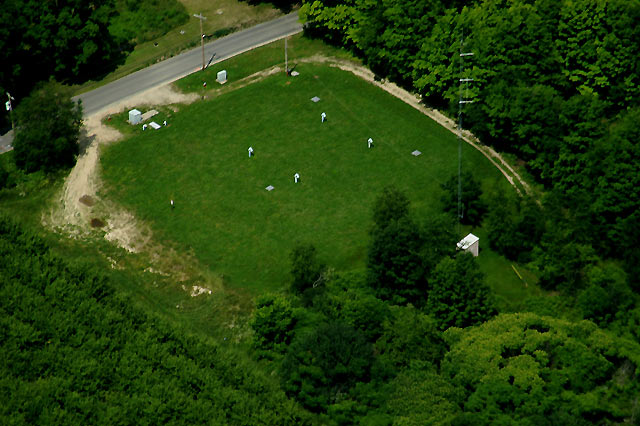

The repeater system is located in Pepperell at a ground elevation of 460 feet ASL. The equipment is housed in 6-foot by 9-foot building adjacent to a 128-foot tower. The repeater system consists of repeaters for 6m, 2m, 2m digipeater, and 70 cm. The 6-meter repeater the transmitter is a modified GE executive II with a power output of 50w. The receiver is a Ramsey kit which was modified for better performance and the antenna is a homebrew vertical array. |
|

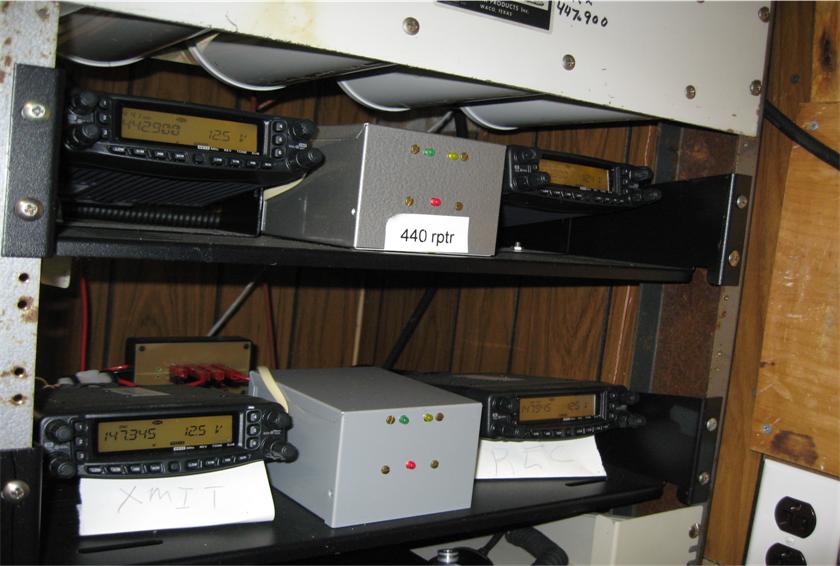

The 70 cm repeater consists of two Yaesu FT-8900 transceivers (one as the receiver and the other as the transmitter). The output power is 50w and the antenna is a Hustler 6 dB gain collinear at 128 feet. This repeater is capable of running on standby power for up to 48 hours. The 2-meter repeater consists of two Yaesu FT-8900 transceivers (one as the receiver and the other as the transmitter). The output power is 50w and the antenna is a Hustler 7dB gain collinear at 70 feet. |
|

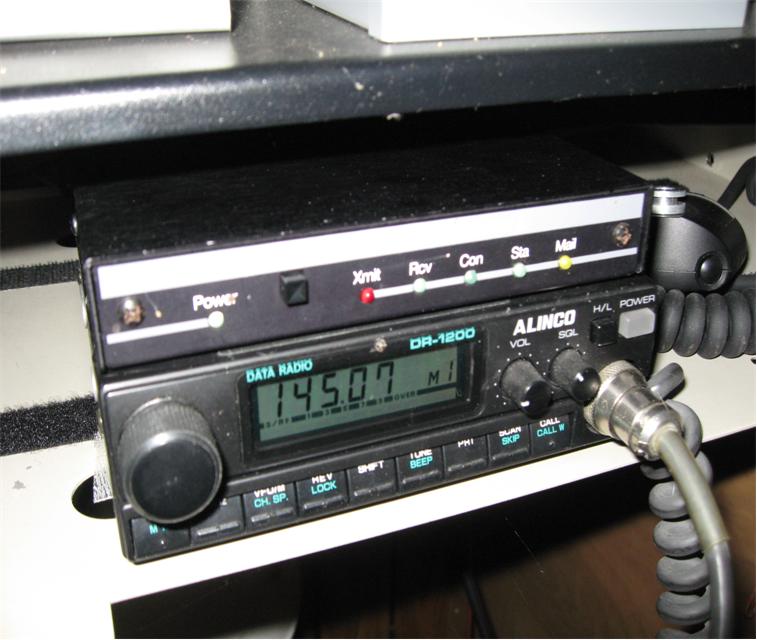

The 2m digipeater consists of a frequency agile Alinco DR-1200 running 25w to 7 dB antenna at about 80 feet. This repeater is capable of running on standby power for up to 48 hours. |
|
